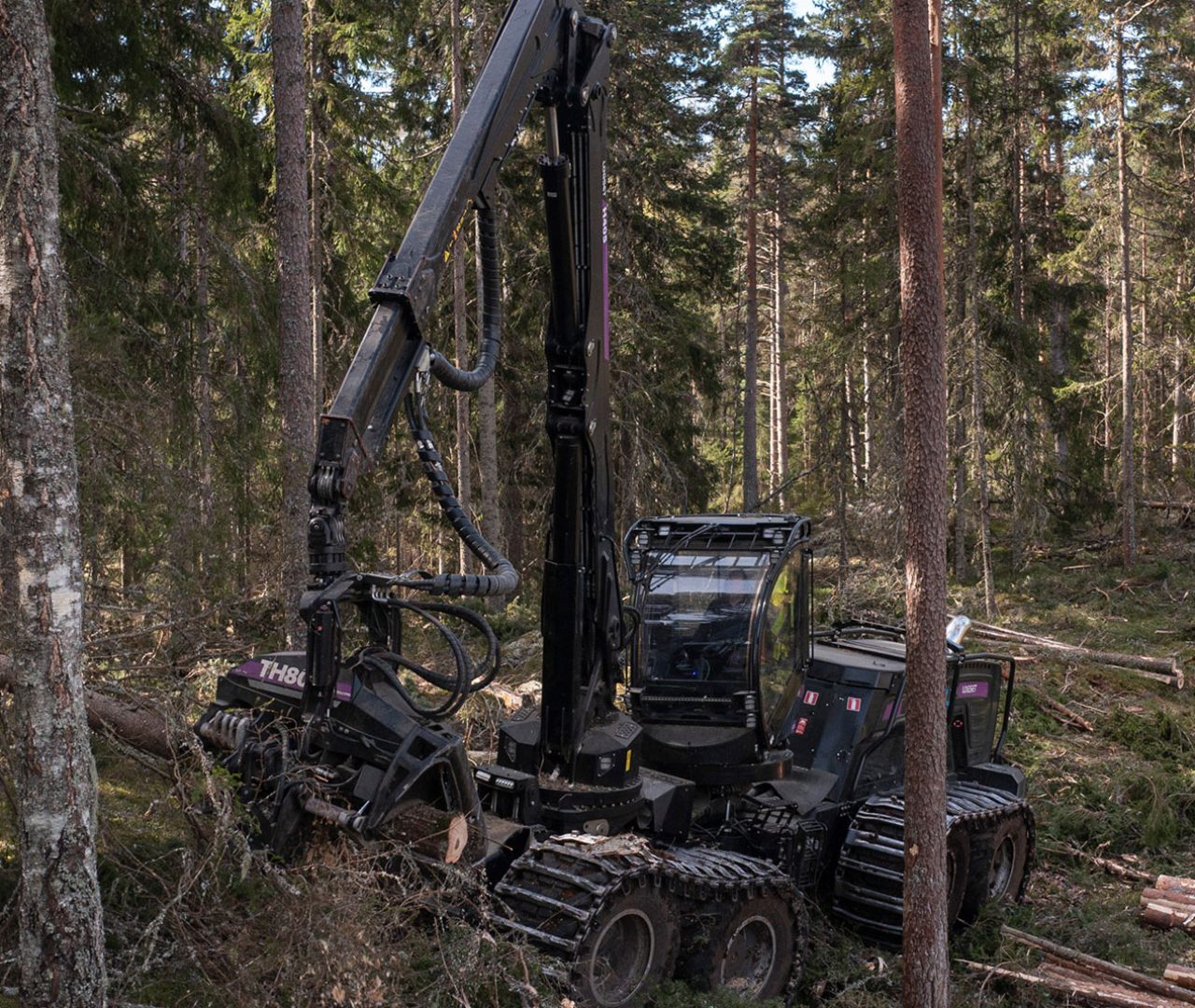

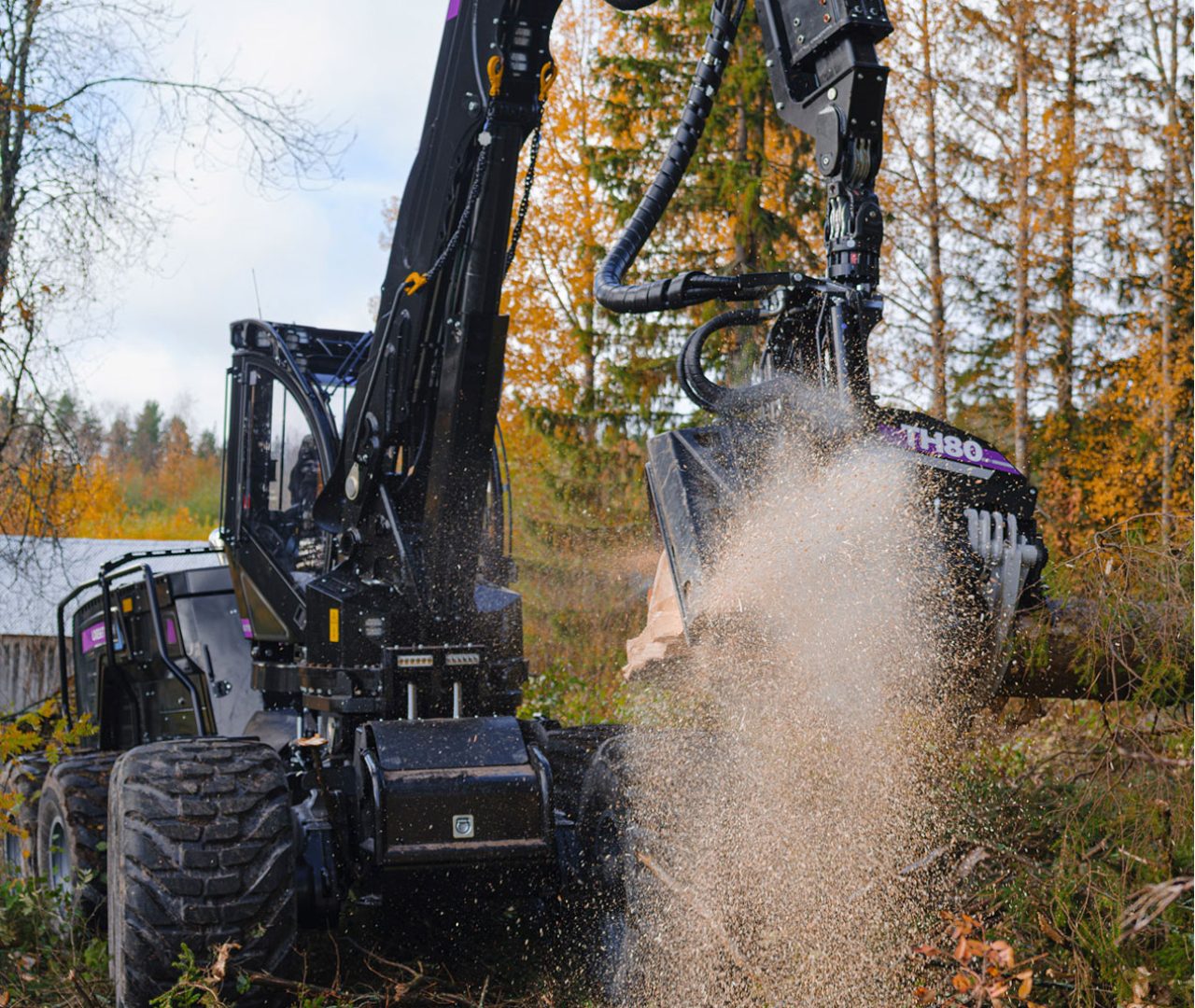

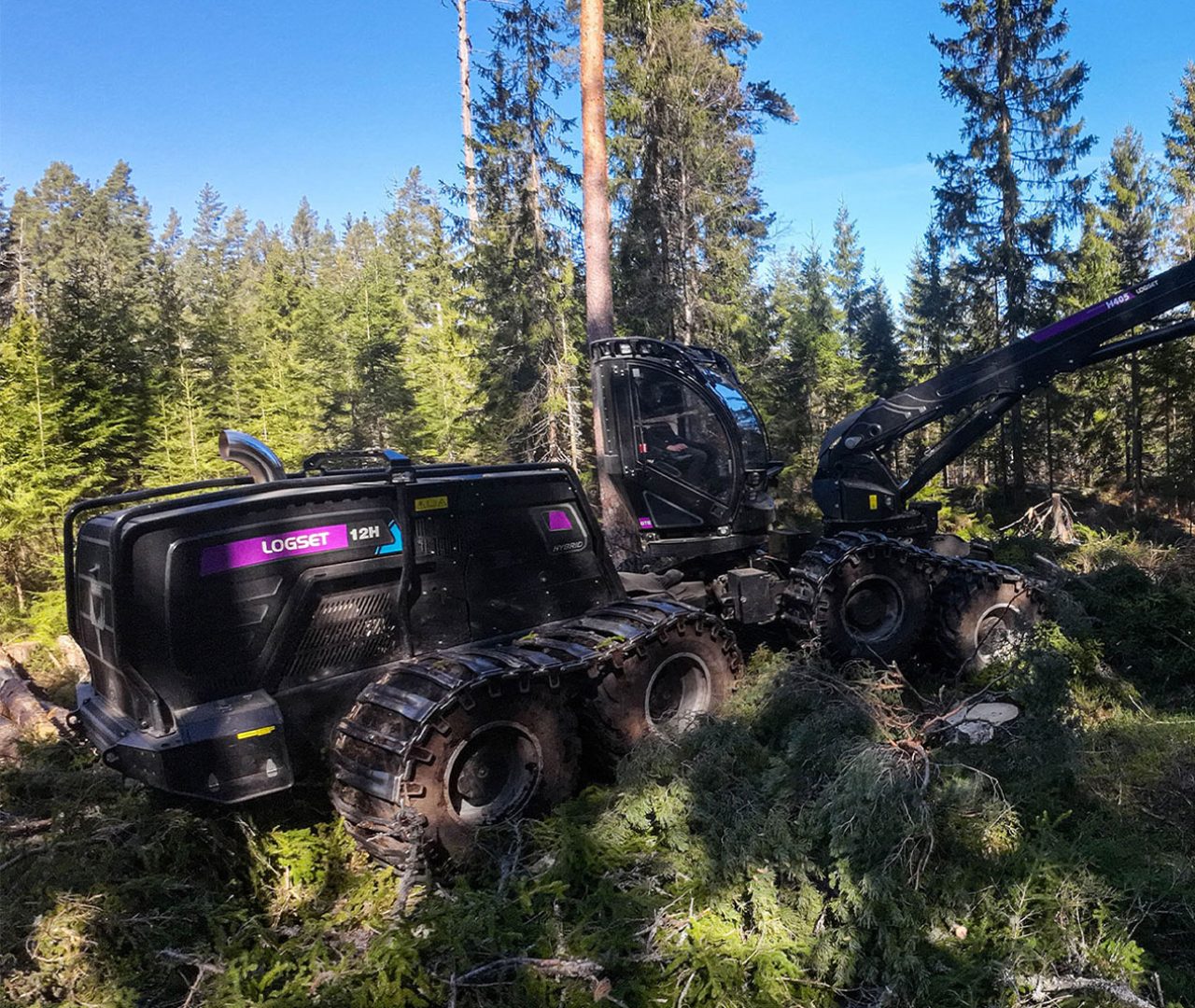

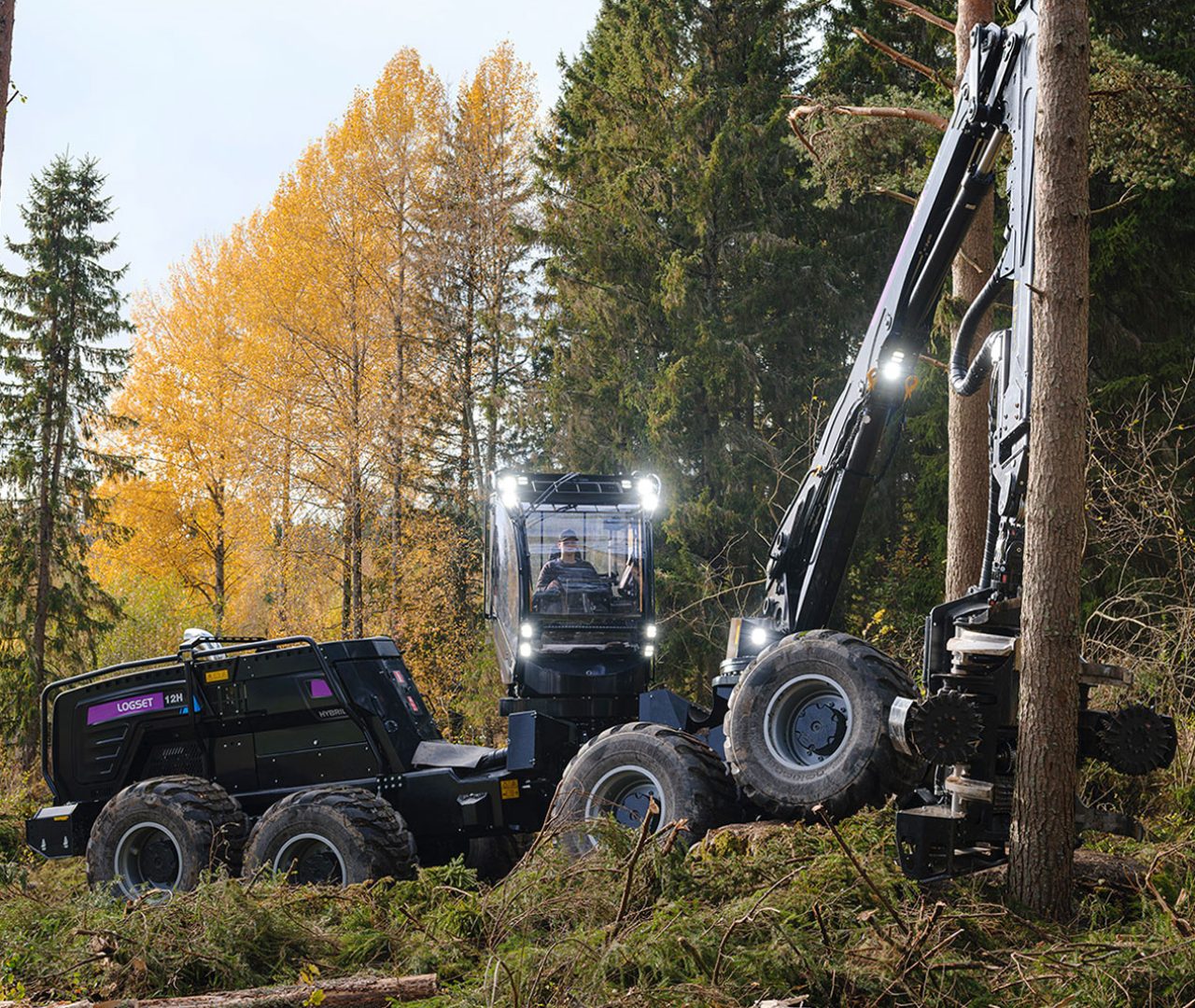

12H GTE HYBRID

YOUR PRODUCTIVITY
ON THE NEXT LEVEL.

The Logset 12H GTE Hybrid – the most productive harvester in the world is a real giant for profitable large-scale harvesting. This friendly giant has it all: revolutionary hybrid technology, double circuit hydraulics, a strong crane, robust transmission and much more. Stability, reliability and comfort in one big package, to put it shortly.

technologies

technologies

HYBRID TECHNOLOGY IN FOREST MACHINES?

The diesel engine runs at a static ~1500 rpm. The electric motor handles the peaks in power. No need for constant rpm changes. You get more power, lower fuel consumption, lower CO2 emissions and less noise. Less stress, for the machine and the pilot.

8H GTE Hybrid

HIGH POWER, LOW CONSUMPTION

ACGO Power 7.4 liter diesel engine gives plenty of power together with the 175 kW electric motor. Our philosophy is to have lots of power in stock, but to use it wisely. Logset machines are the most fuel-efficient forest machines on the market. With Logset, you get the most out of every fuel liter you use. And more importantly, you always have power for all tasks when needed.

EVERYTHING FOR USER EXPERIENCE

Your machine is as good as it feels. Our cabin has good reputation with great visibility, lots of space and low noise levels. Controls can be configured to suit every driver’s needs. TOC-MD 2 keeps you on track with all necessary information.

Good balance, great flotation, enough power for multiple simultaneous tasks.  All simple, basic things for the pilot to succeed all day long. And we know, the day can be really long!

ADVANCED TECHNOLOGY

Logset forest harvesters are a phenomenal example of modern technology. Heavy-duty steel combined with 150 000 – 200 000 rows of code plus the latest electrical and hydraulic innovations. Everything is made for maximum production with reasonable amount of driver effort.  All in a robust steel shell that is built to last and produce.

12H GTE HYBRID

in a nutshell

tech specs

Own weight, from24 500 kg (54 000 lbs)

Max. power at 1850 rpm369 kW (502 hp)
Max. torque at 1500 rpm2 080 Nm (1534 ft lb)

TypeAGCO Power 74 LFTN
StageEU Stage V, EPA Tier 4 final
Power at 1850 rpm214 kW (291 hp)
Torque at 1500 rpm1 280 Nm (944 ft lb)
Fuel tank, net480 l (103 US gal)
DEF40 l (10 US gal)

Max. power at 1850 rpm155 kW (211 hp)
Max. torque 0-1950 rpm800 Nm (590 ft lb)

TypeHydrostatic mechanical
Tractive effort220 kN (49 400 lbf)
Gear box2 gears

Flow 1 000 rpm210 + 210 l/min (55 + 55 US gal)
Hydraulic oil tank, net305 l  (81 US gal)

Control SystemTOC 2
Measuring deviceTOC-MD 2
Battery voltage24 V

Safety tested and approved cabin +
Rotating and levelling cabin

Front780/50-28.5 (710/55-28.5 optional)
Rear780/50-28.5 (710/55-28.5 optional)

CraneMesera 285 H
Lifting capacity280 kNm (206 500 ft lb)
Reach options9,7 m (31.8 ft)

Model optionsTH75, TH85


Contact your local dealer for more information about options.

features

features

MAINTENANCE IN MIND

Logset machines is built to keep in good shape. Several advanced solutions keeps Logset service easy: Component and servicepoints are placed for maintenance in mind. All essential components are accessible. ..

Crane tilt

Crane tilt is a very usable option when working on demanding terrain.

Custom controls

You can customize many of our controls to suit your needs. No need to search buttons, just place them as you want.

AGILE IS MY NAME

Logset harvesters are very agile. The wheels follow sharply in the tracks, and even tight turns are possible to make with great balance. Good agility makes it possible to harvest ..

CABIN TILT & ROTATION

The harvester cabin adjusts with the differences in terrain so you will always sit nice and straight. The adjustable cabin rotation allows you to have the best possible view to ..

FORWARDER CABIN

One of the most spacious cabins on the market. A sleek and simple design built with maximum visibility and usability in mind. By the way, you can see all your ..

STRONG BODY FOR STRONG PEOPLE

Logset machine chassis is heavily based on the original design from the 90’s. It was built to be the most durable machine of the woods. And yes, we still have ..

LET THERE BE LIGHT!

You cannot see what you don’t see. An optimal light field together with wide visibility from a Logset cabin gives you stress-free and better work environment. Stylish and robust light guard ..

TOC-MD 2

Logset machines are operated and controlled by our advanced control system TOC-MD 2.

DECELERATE ASSISTANT AND PROTECTION SYSTEM (DEX)

The DeX is an intelligent engine brake assistant that controls the forwarder in situations requiring higher engine braking moment, for example when driving downhill in steep conditions. The DeX does ..

CABIN DOOR CLOSE AID

A simple, but good gadget: Your cabin door can be opened/closed with one finger. The pneumatic door closing handle is handy when working on windy days or steep terrains.

LOW FUEL CONSUMPTION

All the power you need, with low fuel consumption. Our machines have plenty of power to use wisely. All for making it easy for the environment and your costs.
