6HP GTE

MEDIUM-SIZED FUEL
SAVING HARVESTER

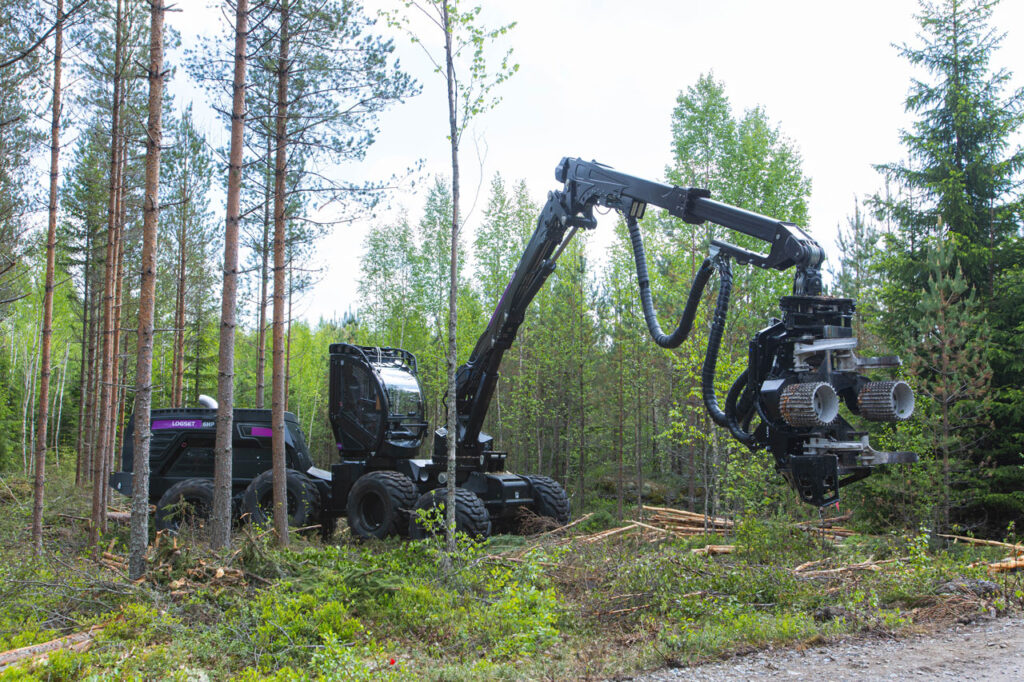

The 6HP GTE is a medium-sized harvester that can be described as stable and fuel saving. It is a fast, agile, and strong machine designed for smaller thinning operations and medium-sized clear-fells. In such conditions it has the optimal productivity and the best economy.

technologies

technologies

EIGTH WHEELS FOR BETTER PERFORMANCE

The 6HP GTE is a stable machine, which brings the operator comfort to a new level. The eight wheels provide the machine an outstanding performance on all terrains: excellent tractive power and stability in steep slopes and flotation for soft ground conditions. In short: when you mount tracks all round you can work where you couldn’t go before.

HIGH POWER, LOW CONSUMPTION

With the fuel-efficient 6-cylinder 7,4 l diesel engine, the 6HP GTE has enough power and torque to push the 190 cm3 hydraulic pump. Due to the successful combination of the engine size, hydraulics and the new Logset TOC-MD 2, the engine is not strained and the operator notices this clearly in the low fuel consumption.

EVERYTHING FOR USER EXPERIENCE

Your machine is as good as it feels. Our cabin has good reputation with great visibility, lots of space and low noise levels. Controls can be configured to suit every driver’s needs. TOC MD2 keeps you on track with all necessary information. Good balance, great flotation, enough power for multiple simultaneous tasks.  All simple, basic things for the pilot to succeed all day long. And we know, the day can be really long!

ADVANCED TECHNOLOGY

Logset forest harvesters are a phenomenal example of modern technology. Heavy-duty steel combined with 150 000 – 200 000 rows of code plus the latest electrical and hydraulic innovations. Everything is made for maximum production with reasonable amount of driver effort.  All in a robust steel shell that is built to last and produce.

6H GTE

in a nutshell

tech specs

Own weight, from21 000 kg (46 300 lbs)

TypeAGCO Power 74 LFTN
StageEU Stage V, EPA Tier 4 final
Power at 1850 rpm190 kW (258 hp)
Torque at 1500 rpm1 130 Nm (830 ft lb)
Fuel tank, net495 l (131 US gal)
DEF40 l (10 US gal)

TypeHydrostatic mechanical
Tractive effort171 kN (38 400 lbf)
Gear box2 gears

Flow 1 000 rpm190 l/min (50 US gal)
Hydraulic oil tank, net305 l (81 US gal)

Control SystemTOC 2
Measuring deviceTOC-MD 2
Battery voltage24 V

Safety tested and approved cabin +
Rotating and levelling cabin

Front710/45-26.5 (600/55-26.5, 800/40-26.5 optional)
Rear710/45-26.5 (600/55-26.5, 800/40-26.5 optional)
CraneMesera 221 H
Lifting capacity188 kNm (138 600 ft lb)
Reach options8,3/10/11,1 m (27.2/32.8/36.1 ft)

Model optionsTH55, TH65


Contact your local dealer for more information about options.

features

features

FORWARDER CABIN

One of the most spacious cabins on the market. A sleek and simple design built with maximum visibility and usability in mind. By the way, you can see all your ..

STRONG BODY FOR STRONG PEOPLE

Logset machine chassis is heavily based on the original design from the 90’s. It was built to be the most durable machine of the woods. And yes, we still have ..

Crane tilt

Crane tilt is a very usable option when working on demanding terrain.

MAINTENANCE IN MIND

Logset machines is built to keep in good shape. Several advanced solutions keeps Logset service easy: Component and servicepoints are placed for maintenance in mind. All essential components are accessible. ..

AGILE IS MY NAME

Logset harvesters are very agile. The wheels follow sharply in the tracks, and even tight turns are possible to make with great balance. Good agility makes it possible to harvest ..

TOC-MD 2

Logset machines are operated and controlled by our advanced control system TOC-MD 2.

LOW FUEL CONSUMPTION

All the power you need, with low fuel consumption. Our machines have plenty of power to use wisely. All for making it easy for the environment and your costs.

CABIN TILT & ROTATION

The harvester cabin adjusts with the differences in terrain so you will always sit nice and straight. The adjustable cabin rotation allows you to have the best possible view to ..

Custom controls

You can customize many of our controls to suit your needs. No need to search buttons, just place them as you want.

LET THERE BE LIGHT!

You cannot see what you don’t see. An optimal light field together with wide visibility from a Logset cabin gives you stress-free and better work environment. Stylish and robust light guard ..

DECELERATE ASSISTANT AND PROTECTION SYSTEM (DEX)

The DeX is an intelligent engine brake assistant that controls the forwarder in situations requiring higher engine braking moment, for example when driving downhill in steep conditions. The DeX does ..

CABIN DOOR CLOSE AID

A simple, but good gadget: Your cabin door can be opened/closed with one finger. The pneumatic door closing handle is handy when working on windy days or steep terrains.
