Logset harvesters are very agile. The wheels follow sharply in the tracks, and even tight turns are possible to make with great balance. Good agility makes it possible to harvest .. Read More
8F GT
YOUR PRODUCTIVITY
AT NEXT LEVEL.

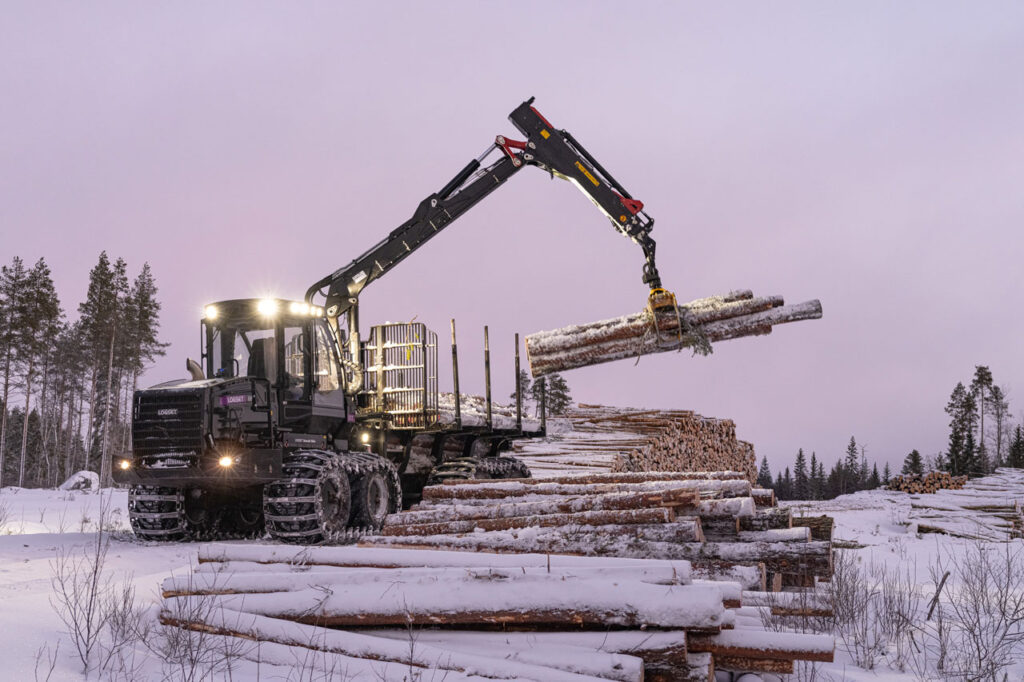

The Logset 8F GT is a cost efficient machine for forwarding. It has a loading capacity of 15 tons and its load bay length allows a double stack of 3 meter logs. The capacity is impressive even in the worst conditions. Tough challenges such as soft ground, steep terrain or long haul are tackled with a powerful engine and strong transmission.
technologies
technologies
LESS DOWNTIME, MORE MONEY.
Logset 8F is, like the other Logset products, designed for hard work.
The essential elements of the mechanical parts have been made stronger to achieve a longer lifespan. The frames, the center joint, bogie attachments, the load bay and a solid hood are all developed for rough forest conditions. The main components have been selected to assure best reliability.
HIGH POWER, LOW CONSUMPTION
The successful combination of the Logset TOC 2 control system and the AGCO Power diesel engine makes Logset one of the most fuel-efficient forwarders.
EVERYTHING FOR USER EXPERIENCE
Your machine is as good as it feels. Our cabin has good reputation with great visibility, lots of space and low noise levels. In a Logset cabin, you can see your front wheels all the time. That’s not the case in all forwarders. Controls can be configured to suit every driver’s needs.
ADVANCED TECHNOLOGY
Logset forest harvesters are a phenomenal example of modern technology. Heavy-duty steel combined with 150 000 – 200 000 rows of code plus the latest electrical and hydraulic innovations. Everything is made for maximum production with reasonable amount of driver effort. All in a robust steel shell that is built to last and produce.
8F GT
in a nutshell
tech specs
| Own weight, from | 18 000 kg (39 700 lbs) |
| Load capacity | 15 000 kg (33 100 lbs) |
| Load area | 4,85 – 5,85 m² |
| Load area length | 4,25 m (167″, 13.9 ft) – 5,6 m (220″, 18.4 ft) |
| Type | AGCO Power 74 LFTN |
| Stage | EU Stage V, EPA Tier 4 final |
| Power at 1850 rpm | 190 kW (258 hp) |
| Torque at 1500 rpm | 1130 Nm (830 ft lb) |
| Fuel tank | 188 l (49 US gal) |
| DEF | 30 l (8 US gal) |
| Type | Hydrostatic mechanical |
| Tractive effort | 196 kN (44 000 lbf) |
| Gear box | 2 gears |
| Steering | Load sensing lever |
| Pump size | Standard: 140 cm³ Optional: 180 cm³ |
| Pressure | 24 Mpa |
| Hydraulic oil tank | 175 l (46 US gal) |
| Control System | TOC 2 |
| Battery voltage | 24 V |
Safety tested and approved cabin
800/40-26.5
| Standard | 710/45-26.5 |
| Optional | 600/55-26.5
800/40-26.5 |
| Crane | Mesera 92 F |
| Reach options | 7,9/10 m (25.9/32.8 ft) |
| Lifting capacity | 130 kNm (95 800 ft·lb) |
| Rotator | 360° |
Contact your local dealer for more information about options.
features
features
Logset machine chassis is heavily based on the original design from the 90’s. It was built to be the most durable machine of the woods. And yes, we still have .. Read More
The DeX is an intelligent engine brake assistant that controls the forwarder in situations requiring higher engine braking moment, for example when driving downhill in steep conditions. The DeX does .. Read More
All the power you need, with low fuel consumption. Our machines have plenty of power to use wisely. All for making it easy for the environment and your costs.
A simple, but good gadget: Your cabin door can be opened/closed with one finger. The pneumatic door closing handle is handy when working on windy days or steep terrains.
The harvester cabin adjusts with the differences in terrain so you will always sit nice and straight. The adjustable cabin rotation allows you to have the best possible view to .. Read More
One of the most spacious cabins on the market. A sleek and simple design built with maximum visibility and usability in mind. By the way, you can see all your .. Read More
You can customize many of our controls to suit your needs. No need to search buttons, just place them as you want.
Logset machines is built to keep in good shape. Several advanced solutions keeps Logset service easy: Component and servicepoints are placed for maintenance in mind. All essential components are accessible. .. Read More
You cannot see what you don’t see. An optimal light field together with wide visibility from a Logset cabin gives you stress-free and better work environment. Stylish and robust light guard .. Read More
